TJ Series Plastic Enclosure (Corner Hinge+Screw Type)
Material : ABS, PCColour : Gray
Protection degree : IP66
Working temperature : -40˚C to +120˚C
Feature :
Durable and Rugged Design. The enclosure is according to EN60529 standard free from corrosion compressive property and insulation, widely used in electronics communications, fire fighting apparatus, control panels, terminal boxes, public accommodation, ship industry, food industry etc.

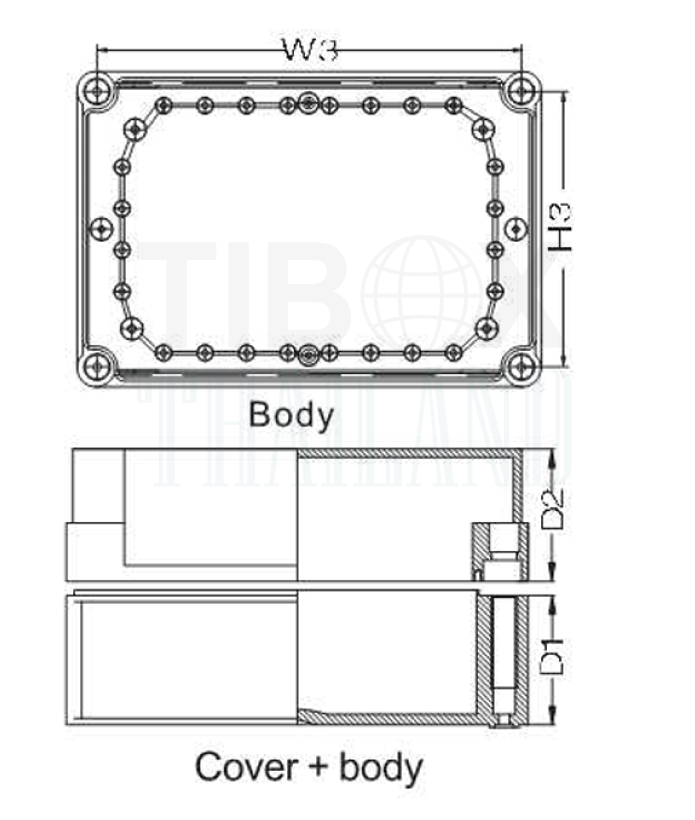

Screw Type | Dimension(mm.) | Mounting Plate | Installation Size(mm.) | ||||
| Grey Door | Clear Door | W x H x D | D1 + D2 | Plastic | Metal | W3 | H3 |
| TJ-AG-2819L | TJ-AT-2819L | 280x190x130 | 100+30 | TJ-2819P | TJ-2819 | 255 | 165 |
| TJ-AG-2819-1L | TJ-AT-2819-1L | 280x190x180 | 100+80 | TJ-2819P | TJ-2819 | 255 | 165 |
| TJ-AG-2819-2L | TJ-AT-2819-2L | 280x190x180 | 150+30 | TJ-2819P | TJ-2819 | 255 | 165 |
| TJ-AG-2819-3L | TJ-AT-2819-3L | 280x190x230 | 150+80 | TJ-2819P | TJ-2819 | 255 | 165 |
| TJ-AG-2828L | TJ-AT-2828L | 280x280x130 | 100+30 | TJ-2828P | TJ-2828 | 255 | 255 |
| TJ-AG-2828-1L | TJ-AT-2828-1L | 280x280x180 | 100+80 | TJ-2828P | TJ-2828 | 255 | 255 |
| TJ-AG-2828-2L | TJ-AT-2828-2L | 280x280x180 | 150+30 | TJ-2828P | TJ-2828 | 255 | 255 |
| TJ-AG-2828-3L | TJ-AT-2828-3L | 280x280x230 | 150+80 | TJ-2828P | TJ-2828 | 255 | 255 |
| TJ-AG-3428L | TJ-AT-3428L | 340x280x130 | 100+30 | TJ-3428P | TJ-3428 | 315 | 255 |
| TJ-AG-3428-1L | TJ-AT-3428-1L | 340x280x180 | 100+80 | TJ-3428 | TJ-3428 | 355 | 355 |
| TJ-AG-3819-SL | TJ-AT-3819-SL | 380x190x100 | 70+30 | TJ-3819P | TJ-3819 | 355 | 165 |
| TJ-AG-3819L | TJ-AT-3819L | 380x190x130 | 100+30 | TJ-3819P | TJ-3819 | 355 | 165 |
| TJ-AG-3819-1L | TJ-AT-3819-1L | 380x190x180 | 150+30 | TJ-3819P | TJ-3819 | 355 | 165 |
| TJ-AG-3828L | TJ-AT-3828L | 380x280x130 | 100+30 | TJ-3828P | TJ-3828 | 355 | 255 |
| TJ-AG-3828-1L | TJ-AT-3828-1L | 380x280x180 | 100+80 | TJ-3828P | TJ-3828 | 355 | 255 |
| TJ-AG-3828-2L | TJ-AT-3828-2L | 380x280x180 | 150+30 | TJ-3828P | TJ-3828 | 355 | 255 |
| TJ-AG-3828-3L | TJ-AT-3828-3L | 380x280x230 | 150+80 | TJ-3828P | TJ-3828 | 355 | 255 |
| TJ-AG-2856L | TJ-AT-2856L | 280x560x130 | 100+30 | TJ-2828PX2 | TJ-2856 | 540 | 255 |
| TJ-AG-3856L | TJ-AT-3856 | 380x560x180 | 150+30 | TJ-3828PX2 | TJ-3856 | 534 | 354 |
