Tibox TJ Series Terminal Block Box
Material : ABS, PC
Screw Type | Dimension(mm.) | Installation Size(mm.) | ||
| Grey Door | W x H x D | D1 + D2 | W3 | H3 |
| TJ-4P | 102 x 50 x 40 | 33 + 8 | 72.5 | 41 |

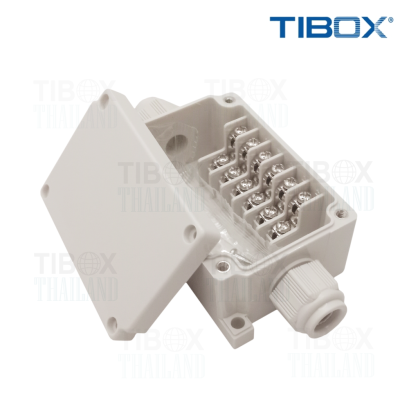

| TJ-6P | 125 x 55 x 40 | 33 + 8 | 88 | 46 |
Screw Type | Dimension(mm.) | Installation Size(mm.) | ||
| Grey Door | W x H x D | D1 + D2 | W3 | H3 |

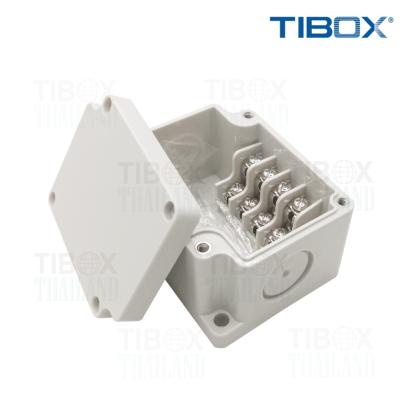

| TJ-4P-K | 70 x 55 x 43 | 35 + 8 | 57.8 | 41 |

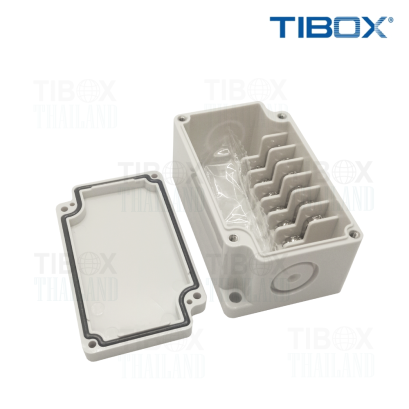

| TJ-6P-K | 91 x 55 x 43 | 33 + 8 | 81 | 45 |
Screw Type | Dimension(mm.) | Installation Size(mm.) | ||
| Grey Door | W x H x D | D1 + D2 | W3 | H3 |

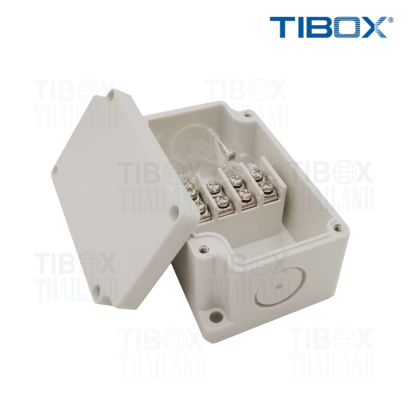

| TJ-4P-M | 91 x 55 x 43 | 33 + 8 | 78 | 47 |
| TJ-6P-M | 91 x 75 x 43 | 33 + 8 | 81 | 65 |

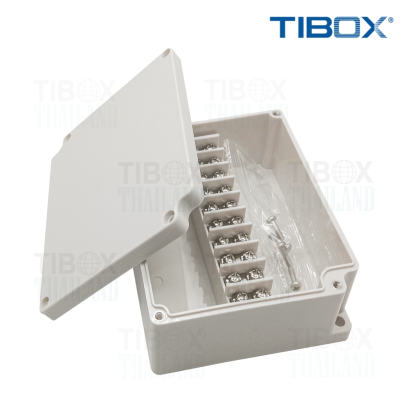

| Tj-10P-M | 110 x 91 x 43 | 36+8 | 102 | 84 |
Screw Type | Dimension(mm.) | Installation Size(mm.) | ||
| Grey Door | W x H x D | D1 + D2 | W3 | H3 |
| TJ-10P | 110 x 75 x 40 | 32 + 8 | 100 | 65 |
| TJ-15P | 180 x 110 x 55 | 39.5 + 16 | 168 | 88 |
Screw Type | Dimension(mm.) | Installation Size(mm.) | ||
| Grey Door | W x H x D | D1 + D2 | W3 | H3 |
| TJ-15P-S | 180 x 100 x 75 | 60 + 16 | 168 | 88 |
| TJ-20P-S | 223 x 100 x 75 | 60 + 16 | 213 | 92 |
| TJ-15P-M | 180 x 100 x 75 | 60 + 15 | 168 | 88 |
| TJ-20P-M | 223 x 100 x 75 | 60 + 16 | 213 | 92 |
Screw Type | Dimension(mm.) | Installation Size(mm.) | ||
| Grey Door | W x H x D | D1 + D2 | W3 | H3 |
| TJ-30P-S | 200 x 150 x 100 | 80 + 20 | 181 | 131 |
| TJ-30P-M | 200 x 200 x 95 | 75 + 20 | 181 | 181 |
| TJ-40P-S | 250 x 150 x 100 | 80 + 20 | 232 | 132 |
| TJ-40P-M | 250 x 200 x 100 | 75 + 25 | 232 | 182 |
Screw Type | Dimension(mm.) | Installation Size(mm.) | ||
| Grey Door | W x H x D | D1 + D2 | W3 | H3 |
| TJ-45P | 380 x 190 x 100 | 70 + 30 | 356 | 166 |
| TJ-50P | 380 x 190 x 100 | 70 + 30 | 356 | 166 |
| TJ-60P | 380 x 190 x 100 | 70 + 30 | 356 | 166 |
Screw Type | Dimension(mm.) | Installation Size(mm.) | ||
| Grey Door | W x H x D | D1 + D2 | W3 | H3 |
| PBT-3P | 65 x 33 x 24 | 19.5 + 4.5 | 57.8 | 25.8 |
| PBT-4P | 60 x 40 x 24 | 19.5 + 4.5 | 52.8 | 32.8 |
| PBT-6P | 70 x 50 x 24 | 19 + 5 | 62 | 42 |
PBT-6P
TIBOX TJ Series PBT-6P Terminal Block Box , ABS, PC IP66 / IK07 / IK08, -40°C ~ 120°C, 400V, 10AMP, Product with hole can be used without seperate processing.
ขายแล้ว 0 ชิ้น
PBT-4P
TIBOX Terminal Block Box PBT-4P TJ Series ABS, PC IP66 / IK07 / IK08, -40°C ~ 120°C, 400V, 10AMP, Product with hole can be used without seperate processing.
ขายแล้ว 0 ชิ้น
TJ-15P-S
TIBOX TJ-Series Terminal Block Box TJ-15P-S, ABS, PC IP66 / IK07 / IK08, -40°C ~ 120°C, 400V, 10AMP, Product with hole can be used without seperate processing.
ขายแล้ว 0 ชิ้น
TJ-15P
TIBOX TJ-Series Terminal Block Box TJ-15P, ABS, PC IP66 / IK07 / IK08, -40°C ~ 120°C, 400V, 10AMP, Product with hole can be used without seperate processing.
ขายแล้ว 0 ชิ้น

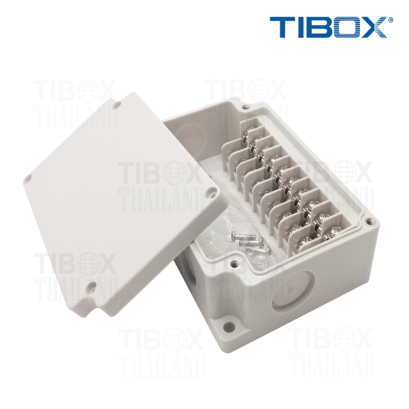

TJ-10P
Tibox Plastic Terminal Block Box TJ-10P, TJ-Series Terminal Block Box IP66, High Quality ABS, PC material, -40°C ~ 120°C, 15A, 400V, 10AMP
ขายแล้ว 0 ชิ้น
PBT-3P
TIBOX TJ Series Plastic PBT-3P Terminal Block Box ABS, PC IP66 / IK07 / IK08, -40°C ~ 120°C, 400V, 10AMP, Product with hole can be used without seperate processing.
ขายแล้ว 0 ชิ้น
