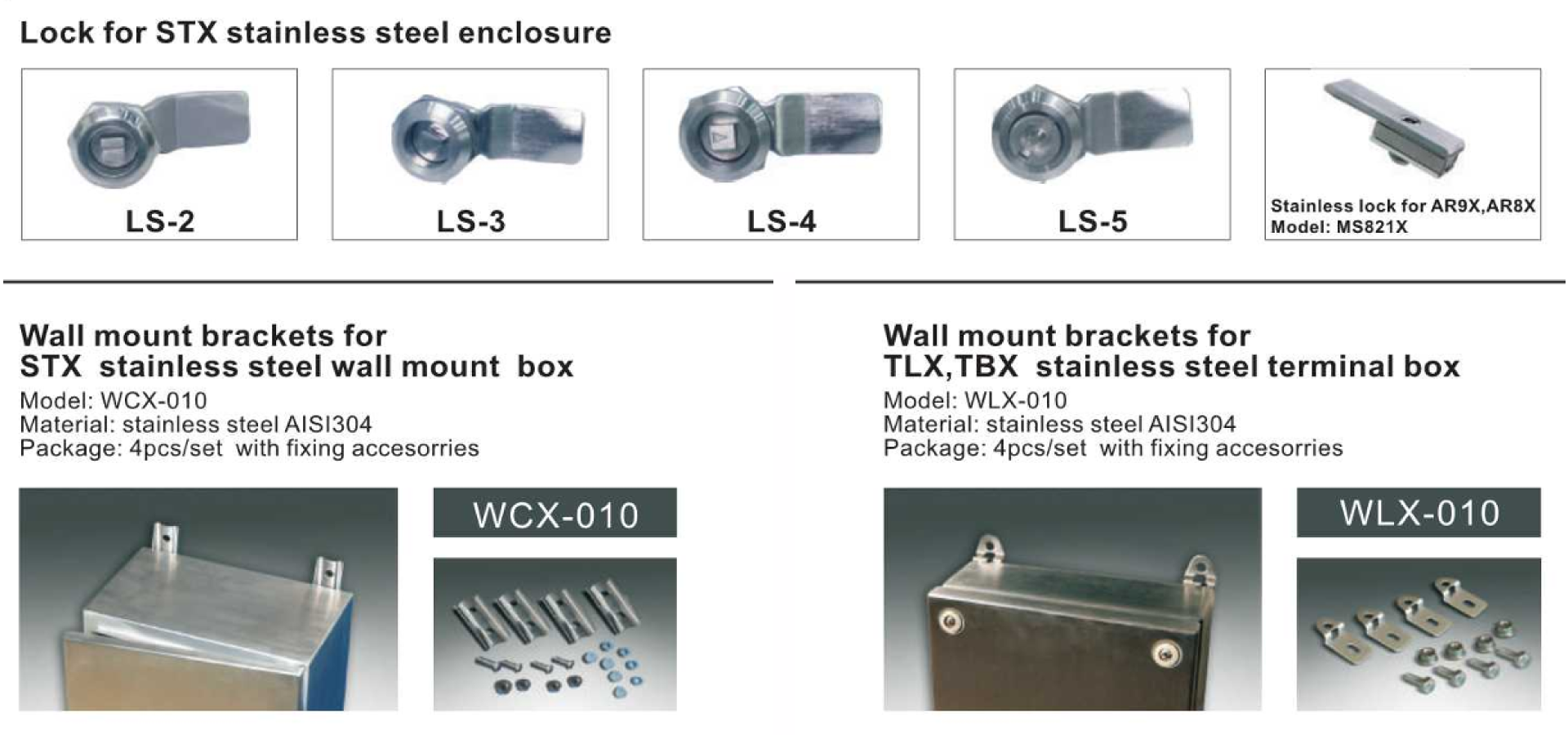

Enclosure,door with sealing gasket and fixing accessories,lock system,stainless steel hinges Galvanised mounting plate to be offered separately Wall mount brackets to be offered separately Din-rail to be offered separately
Material : boxes and cover manufactured from thickness 1.2mm,AISI 304 (AISI316L on request) Stainless steel door with lock model K3-X,180° stainless steel hinges
Protection degree: IP66 Impact resistance IK10
Size | Product model |
W H D | terminal box - TBX |
150x150x80 | TBX15158 |
150X300X80 | TBX15308 |
200X200X80 | TBX20208 |
200X300X80 | TBX20308 |
200X400X80 | TBX20408 |
150X150X120 | TBX151512 |
150X300X120 | TBX153012 |
200X200X120 | TBX202012 |
200X300X120 | TBX203012 |
200X400X120 | TBX204012 |
200X500X120 | TBX205012 |
300X300X120 | TBX303012 |
300X400X120 | TBX304012 |
300X400X155 | TBX3040155 |
300X600X155 | TBX3060155 |
300X800X155 | TBX3080155 |
